Higher-Order Partial Derivatives Explained: SageMath Visualizations & Real-World Applications

📚 🌐 From Slopes to Surprises: Mastering Higher-Order Partial Derivatives with SageMath

Ever wondered how a mountain slope changes as you hike diagonally instead of straight up? Welcome to the world of higher-order partial derivatives — where slopes have their own slopes, and symmetry sometimes breaks.

In this visual + interactive post, we’ll explore:

• ✅ Basic and mixed partials
• ✅ When Clairaut’s Theorem fails
• ✅ Laplace’s Equation and physical equilibrium
• ✅ Coordinate transformations
• ✅ Directional derivatives in action

And yes, we’ll do it all with SageMath! 🎓

Summary:

You’ll learn how functions behave when second-order derivatives are involved, explore how symmetry and balance arise in math and physics, and gain hands-on skills with SageMath visualizations.

---

🔍 Part 1: What Are Partial Derivatives, Really?

🧠 Intuition First

Imagine you’re on a hill. Walking in different directions changes how steep it feels. That “steepness” is what partial derivatives measure.

• f_x : slope in x-direction
• f_y : slope in y-direction
• f_xx,f_yy : how that slope changes — concavity in that direction
• f_xy,f_yx : how the slope in one direction changes as you move in the other — curvature interaction




🎯 Mini Challenge

What do you think f_xy will be for this function? Zero? Try and see.




✅ Checkpoint

• Where do you encounter "slopes of slopes" in your work or studies?
• Have you ever thought of second derivatives as curvatures?

---

🧩 Part 2: When Mixed Partials Disagree – A Smooth Lie?

❓ Why Do We Care?

Clairaut’s Theorem says: If the function is smooth, then f_xy=f_yx.But what if it’s not smooth at one point?

🚨 What's the Problem Here?

Try this strange function:





👀 At (0,0), the denominator becomes zero, and while we define it manually as 0, the partial derivatives may not behave nicely.

Check the mixed partials:




🧨 Surprise! f_xy≠f_yx

📉 Clairaut’s Theorem fails here — because the function is not smooth (its partials aren’t continuous) at the origin.

⚡ Mini Challenge:

Can you construct a similar function with different powers in numerator/denominator that breaks Clairaut’s Theorem?

🧠 Quick History:

Alexis Clairaut (1713–1765) was one of the first to study symmetry in second derivatives — while working on planetary motion equations!

---

🌊 Part 3: Harmony in Nature – Laplace’s Equation

🌐 What It Models

The Laplacian,∇² =f_xx+f_yy ,appears in:

• Heat flow 🥵→❄️
• Electrostatics ⚡
• Fluid dynamics 🌊
• Image processing 📸

Try:




🧪 Modify and compare:

• Harmonic:

  f(x,y)=x² - y² → should give Laplacian = 0

• Not Harmonic:

  f(x,y)=x² + y² → Laplacian ≠ 0

🎨 Tip: Try plotting both to see what "balance" vs. "growth" looks like!

✅ Checkpoint

• Can you think of a physical system in equilibrium? Could it obey Laplace’s equation?

---

🔄 Part 4: Switching Coordinates – A New Lens

🔍 Why Switch?

Sometimes, switching to polar coordinates simplifies things — especially for circular symmetry.




🌀 Visualize: Cartesian to Polar

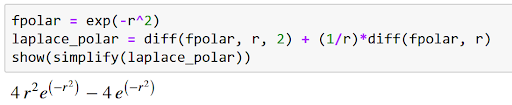

❓ Challenge: Is \( f(x,y) = e^{-(x^2 + y^2)} \) harmonic?

💡 Hint: Use polar Laplacian

The polar form of Laplace’s equation is: \( \nabla^2 f = \frac{\partial^2 f}{\partial r^2} + \frac{1}{r} \frac{\partial f}{\partial r} + \frac{1}{r^2} \frac{\partial^2 f}{\partial \theta^2} \)



---

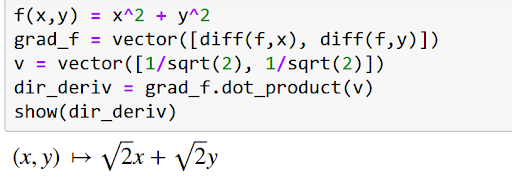

🧭 Part 5: Directional Derivatives – Choose Your Path

🧠 Intuition

You want the steepness in any direction? That’s what directional derivatives measure, via the gradient:



🧭 The gradient vector points in the direction of steepest increase.

📈 Plot with:




🌐 Application: In machine learning, directional derivatives guide optimization steps (like in gradient descent).

---

🧩 Bonus: Debugging in SageMath

🛠️ Common Pitfalls

• ❌ Forgetting to define functions symbolically: f(x,y) = ... is different from f = ...
• ⚠️ Division by zero in custom piecewise functions
• 🔍 Use assume() to clean up symbolic simplifications
• 📘 Check the SageMath docs when in doubt!


---

📚 Reflect & Explore

• Can you sketch your own function where the mixed partials disagree?
• How does changing coordinate systems affect interpretation?
• Modify Laplace’s Equation with boundary constraints — what changes?

🙋‍♀️ Poll: Have You Ever Caught Clairaut’s Theorem Failing?

Yes, in a class or example
No, first time seeing it
Curious to try it now!


---

🔜 What’s Next?

Ready for the next step? We’ll explore:

• 🧮 Multiple integrals in 2D and 3D
• 📦 Volumes and surface areas of revolution
• 🎯 Real-world applications in physics, engineering, and material design
• 🧠 Until then — what’s your favorite example of “slopes of slopes”? Drop it in the comments!

---
