"Master Ellipsoid Geometry: Explore Volume Formulas, SageMath 3D Plots, Triple Integration, and Prolate Ellipsoid Calculations"

-
Master Ellipsoid Geometry with SageMathDescription of your screenshot

๐ŸŒŸ Dive into Ellipsoids: Volume Calculation and 3D Visualization with SageMath

Ever wondered how to find the volume of a rugby ball? Or why planets like Earth aren't perfect spheres but slightly squished ellipsoids? Today, we’ll explore the volume of an ellipsoid, use SageMath to calculate and visualize it, and even show you how to interact with your own examples!

๐Ÿ“š 1. What is an Ellipsoid?

An ellipsoid is like a 3D stretched or squished sphere. Mathematically, it's the set of all points (x, y, z) satisfying:

x²/a² + y²/b² + z²/c² = 1

where a, b, and c are the semi-axes along the x-, y-, and z-axes.

  • The Earth (flattened at the poles!)
  • Watermelon
  • Rugby balls

๐Ÿ“ 2. The Volume Formula

The volume V of an ellipsoid is given by:

V = (4/3) * ฯ€ * a * b * c

๐Ÿ‘‰ Tip: Always use the semi-axes (half the full diameter), not the full width.

๐Ÿงฎ 3. Interactive SageMath: Calculate the Volume!

Here’s how you can calculate the volume yourself using SageMath:

 Screenshot of SageMath Code

๐Ÿ”ต Try it yourself: Replace a, b, and c with your own numbers!

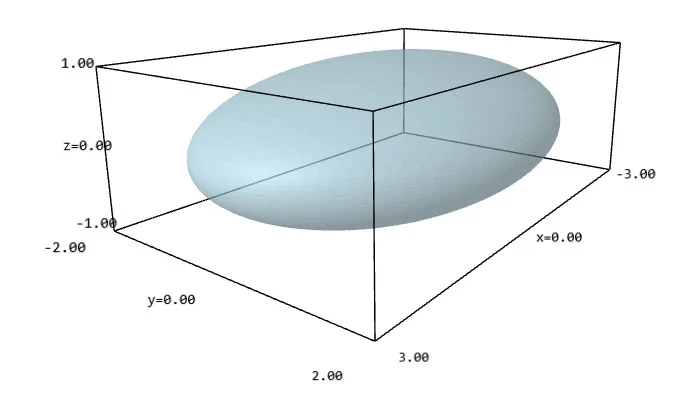

๐ŸŒ€ 4. 3D Visualization of an Ellipsoid

Want to see your ellipsoid? Here's how to create a 3D plot:

 Screenshot of SageMath CodeScreenshot of SageMath Code

✨ Bonus: Revolving an Ellipse to Create an Ellipsoid

Suppose you revolve the ellipse:

x²/a² + y²/b² = 1

about the x-axis. You generate a 3D ellipsoid of revolution!



Plot the Ellipse:

Screenshot of SageMath CodeScreenshot of SageMath Code

Create the 3D Surface:

Screenshot of SageMath CodeScreenshot of SageMath Code

Calculate the Volume:

Screenshot of SageMath Code

๐ŸŒŽ 5. Where is Ellipsoid Volume Used?

Calculating the volume of ellipsoids is practical in fields like:

  • Astronomy (planetary models)
  • Medical Imaging (modeling organs like kidneys)
  • Engineering (fuel tanks, structural domes)

⚠️ 6. Common Pitfalls

๐Ÿšซ Mistake

Using diameter instead of semi-axis values.

✅ Fix

Always use half the full length.

๐Ÿšซ Mistake

Wrong integration limits during revolution.

✅ Fix

Double-check the region you're rotating.

๐Ÿ”ฅ 7. Wrapping Up

Today you learned:

๐ŸŒ

What an ellipsoid is

A geometric shape with fascinating properties.

๐Ÿ“

How to compute its volume

Using the formula V = (4/3) ฯ€ a b c.

๐ŸŽจ

How to plot it in 3D

Visualize ellipsoids interactively with SageMath.

๐Ÿ–ฅ️

How SageMath can make it interactive

Calculate and explore mathematical concepts effortlessly.

๐Ÿ’ฌ Let’s Chat!
Which 3D shape should we explore next?
๐Ÿ”น Paraboloids
๐Ÿ”น Hyperboloids
๐Ÿ”น Toroids (doughnut shapes!)

Drop your pick in the comments below! ๐ŸŽฏ
